Specification
Material
Cold Rolled Steel
Finish
Bright Zinc
Width
Drawers up to 406mm (16˝) wide
Length
182~438mm (7˝~17˝)
Installation
Side lock screw
Travel
3/4 Travel
Load Capacity
33 lb / 15 kg
Feature
Central Pumping ▸ Two-way ▸ Non-detachable <H: 10.0>
Thin design, suitable for small drawer with small side clearance.
Stable side screws, easy to assemble.

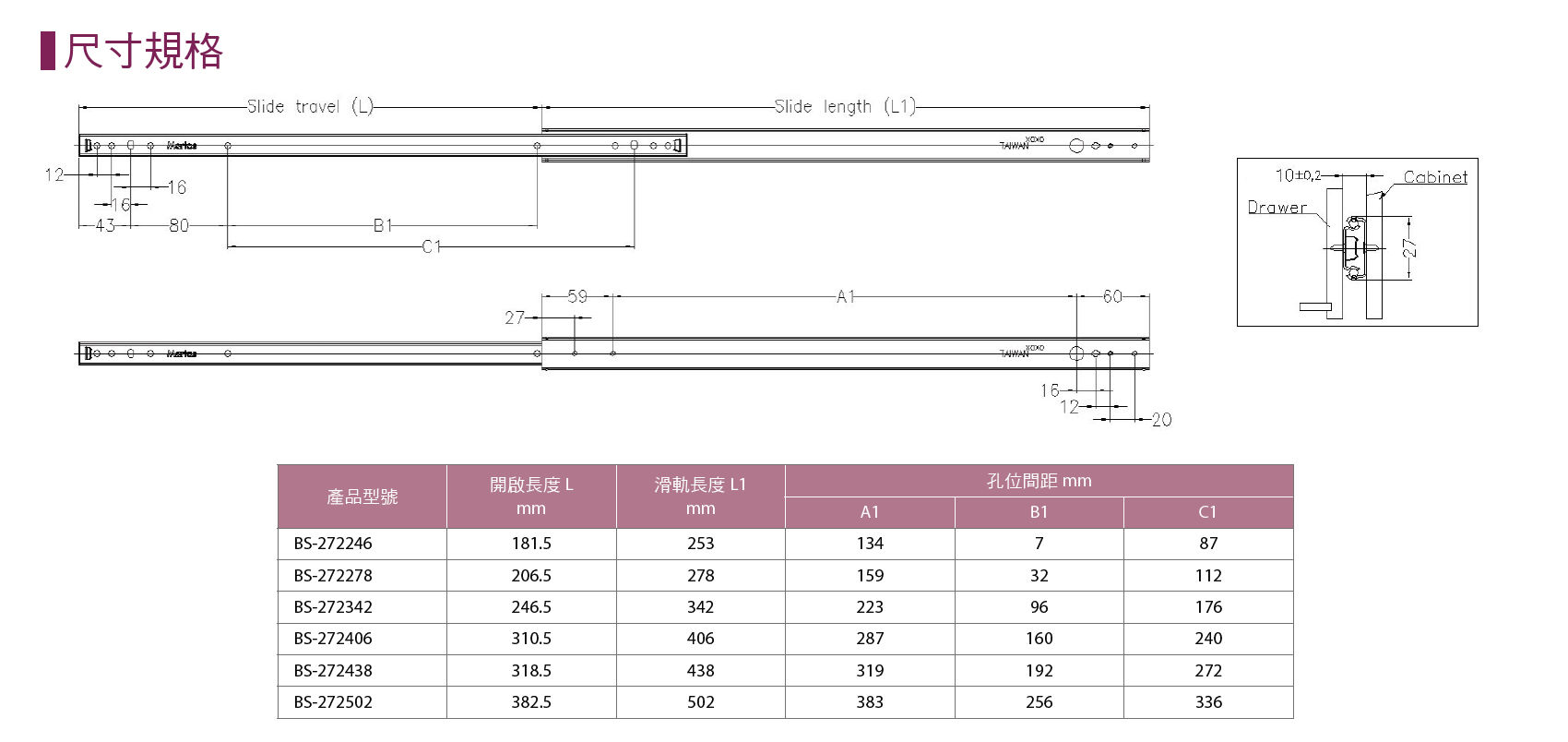

Dimension
Application
27 series
Office
Residential
Automotive
Kitchen
Remarks
Shallow drawers, drawers, pencils, drawers, drawers, bedside cabinets, bathroom cabinets, kitchen cabinets, and drawers are suitable for light weight drawers.
All lightly loaded drawers are suitable.
