USH-40SVC

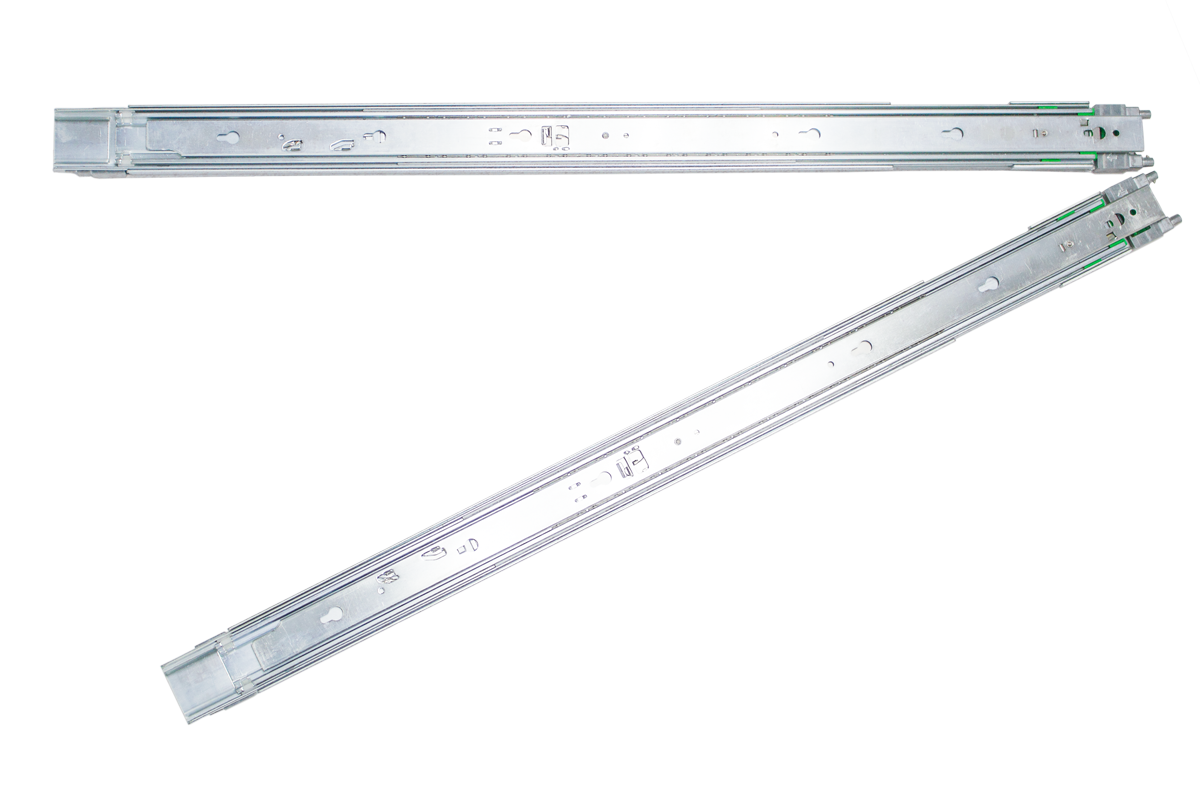

Martas USH-40SVC Sever Slide Rail

Specification

Material
Cold Rolled Steel
Finish
Electroplated Zinc
Height
40.6mm(1.6˝)
Width
5.8mm(0.228˝)
Depth
660.4mm~914.4mm(26˝~36˝)
Loading
39kg(86lbs)/pair
Application
For 1U-2U Chassis
Travel
Full Travel
Load Capacity
86 lb / 39 kg

Feature

EIA Mounting Brackets for Square & Round Holes
Tool-less Assembly for Rack, Chassis and Cable Management Arm
Lock out Function, Thumb Screw

Dimension

Application

40 series

Remarks
